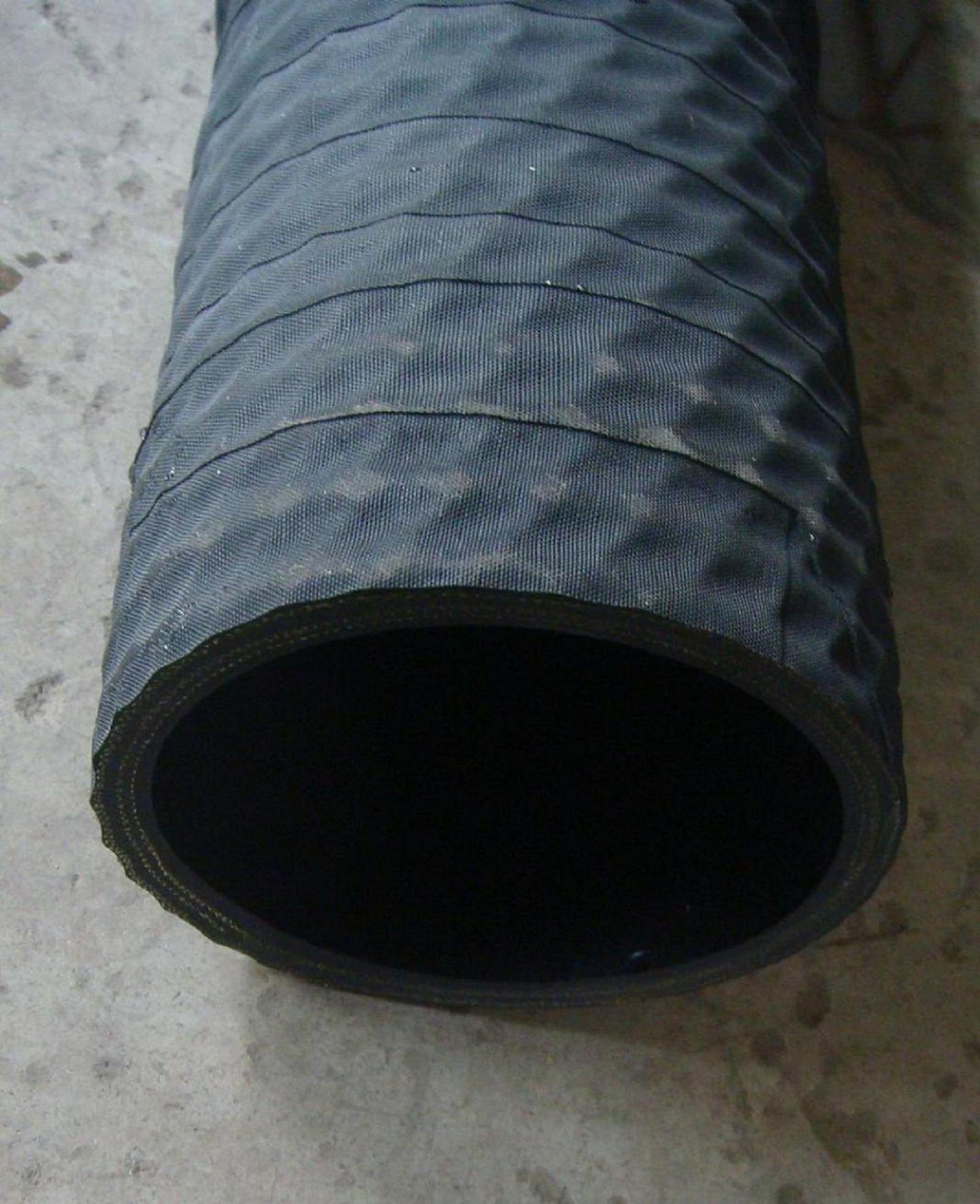

Tubo gome per shkarkime

Tubo shkarkimi gome e zeze dhe lisho. Rezistente per materiale abrazive si zhavorr, rere, gure, cimento etj. E perforcuar me nje spirale teli dhe sintetike ne te njejten kohe.

ID Nom. OD Max. WP Bend Radius Vacuum HG Weight
in. mm in. mm psi MPa in. mm in. mm lbs./ft. kg/m
3/4 19.06 1.09 27.91 150 0.86 2 51 29 737 0.33 0.49
1 25.34 1.34 34.19 150 0.86 2 51 29 737 0.41 0.61
1-1/4 32.00 1.61 40.84 150 0.86 4 102 29 737 0.50 0.75
1-1/2 38.00 1.84 46.95 150 0.86 4 102 29 737 0.63 0.94
2 51.16 2.38 60.42 150 0.86 7 178 29 737 0.84 1.25
2-1/2 63.69 2.89 73.30 150 0.86 10 255 29 737 1.08 1.61
3 76.14 3.42 86.85 150 0.86 14 356 29 737 1.46 2.18
3-1/2 90 3.97 100.99 150 0.86 14 356 29 737 1.80 2.68
4 101.6 4.45 113.12 150 0.86 18 457 29 737 2.03 3.02
5 127.35 5.53 140.58 150 0.86 20 510 29 737 3.34 4.98
6 152.66 6.63 168.02 150 0.86 24 612 29 737 4.67 6.96



TUBE : Black , smooth, compounded for long wear resistance in handing hard, sharp abrasive materials such as sand, gravel, shells, stones, etc.

REINFORCEMENT : High strength synthetic cord plus helix wire

COVER : Black, corrugated (wrapped finish) synthetic rubber highly resistant to weather, sea water and abrasion

APPLICATION : Dry material suction and delivery hose specially designed for transfer of dry cement , sand gravel, feed, seeds etc. by suction , gravity or by pneumatic systems.

TEMPERATURE : -40’C to +85’C.

ID Nom. OD Max. WP Bend Radius Vacuum HG Weight
in. mm in. mm psi MPa in. mm in. mm lbs./ft. kg/m
3/4 19.06 1.09 27.91 150 0.86 2 51 29 737 0.33 0.49
1 25.34 1.34 34.19 150 0.86 2 51 29 737 0.41 0.61
1-1/4 32.00 1.61 40.84 150 0.86 4 102 29 737 0.50 0.75
1-1/2 38.00 1.84 46.95 150 0.86 4 102 29 737 0.63 0.94
2 51.16 2.38 60.42 150 0.86 7 178 29 737 0.84 1.25
2-1/2 63.69 2.89 73.30 150 0.86 10 255 29 737 1.08 1.61
3 76.14 3.42 86.85 150 0.86 14 356 29 737 1.46 2.18
3-1/2 90 3.97 100.99 150 0.86 14 356 29 737 1.80 2.68
4 101.6 4.45 113.12 150 0.86 18 457 29 737 2.03 3.02
5 127.35 5.53 140.58 150 0.86 20 510 29 737 3.34 4.98
6 152.66 6.63 168.02 150 0.86 24 612 29 737 4.67 6.96
