Tubo hidraulike me dy shtresa teli R2
TIPARET KRYESORE :
SAE 100R2AT/ DIN EN 853 2SN.Tubo presioni hidraulike e perbere me dy shtresa teli dhe me gome sintetike e cila i lejon ne te njejten kohe dhe nje rezistence ndaj vajrave dhe ndryshimeve klimaterike.
FUSHA E APLIKIMIT :
Game e gjere aplikimi sidomos ne transportimin e lengjeve hidraulike, si glicol, vajra minerale, hydrokarbon etj.
TEMPERATURA E PUNES :
Nga -40 grade celcius deri ne 100 grade celcius.
TABELA E INFORMIMIT:
| Dash | ID | OD | Working Pressure | Burst Pressure | Min. B Radius | |
| Size | Inch | Inch | PSI | PSI | Inch | |
| -4 | 1/4 | .59 | 5000 | 20000 | 3.94 | |
| -5 | 5/16 | .65 | 4250 | 17000 | 4.53 | |
| -6 | 3/8 | .75 | 4000 | 16000 | 5.12 | |
| -8 | 1/2 | .87 | 3500 | 14000 | 7.09 | |
| -10 | 5/8 | 1.00 | 2750 | 11000 | 7.87 | |
| -12 | 3/4 | 1.15 | 2250 | 9000 | 9.45 | |
| -16 | 1 | 1.50 | 2000 | 8000 | 11.81 | |
| -20 | 1-1/4 | 1.90 | 1625 | 6500 | 16.54 | |
| -24 | 1-1/2 | 2.15 | 1250 | 5000 | 19.69 | |
| -32 | 2 | 2.65 | 1125 | 4500 | 24.8 |
MAIN FEATURES :

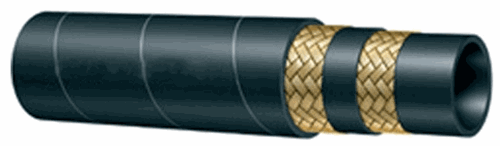

SAE 100R2AT/ DIN EN 853 2SN. This hose consists of an inner tube of oil resistant synthetic rubber, two wire braids reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS :
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE:
From -40’C up to +100’C.
Extended Information:
| Dash | ID | OD | Working Pressure | Burst Pressure | Min. B Radius | |
| Size | Inch | Inch | PSI | PSI | Inch | |
| -4 | 1/4 | .59 | 5000 | 20000 | 3.94 | |
| -5 | 5/16 | .65 | 4250 | 17000 | 4.53 | |
| -6 | 3/8 | .75 | 4000 | 16000 | 5.12 | |
| -8 | 1/2 | .87 | 3500 | 14000 | 7.09 | |
| -10 | 5/8 | 1.00 | 2750 | 11000 | 7.87 | |
| -12 | 3/4 | 1.15 | 2250 | 9000 | 9.45 | |
| -16 | 1 | 1.50 | 2000 | 8000 | 11.81 | |
| -20 | 1-1/4 | 1.90 | 1625 | 6500 | 16.54 | |
| -24 | 1-1/2 | 2.15 | 1250 | 5000 | 19.69 | |
| -32 | 2 | 2.65 | 1125 | 4500 | 24.8 |
